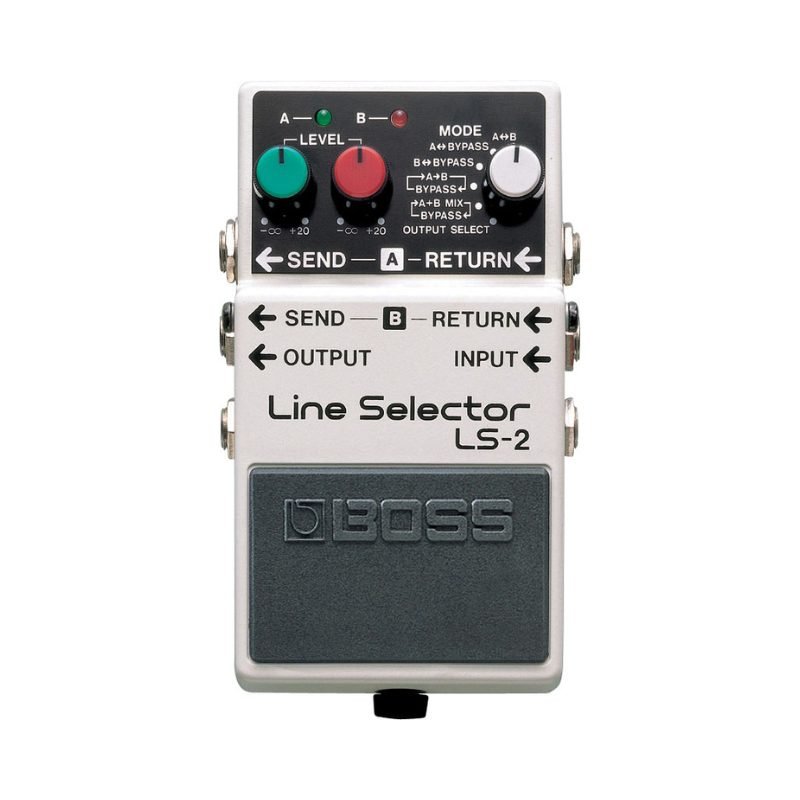

LS-2 LINE SELECTOR/POWER SUPPLY LS2

Description

LS-2: Line Selector

Input Impedance
1 M ohms
Output Impedance
1 k ohms

Recommended Load Impedance
10 k ohms or greater

Residual Noise Level
– 85 dBu or less (IHF-A, Typ.)

Connectors
INPUT Jack, OUTPUT Jack, RETURN A/ B Jack, SEND A/ B Jack, DC In/Out

Power Supply
DC 9 V: Dry Battery 9 V type (6F22/9 V), AC Adaptor

Current Draw
25 mA (DC 9 V)Accessories

Dry Battery 9 V type (6F22/9 V)

Option
AC Adaptor (PSA-Series)

Size and Weight ( incl. battery )
Width
73 mm
2-7/8 inches
Depth
129 mm
5-1/8 inches
Height
59 mm
2-3/8 inches
Weight
0.4 kg0 lbs. 15 oz.

* 0 dBu = 0.775 Vrms
*The specifications are subject to change without notice.
